Description

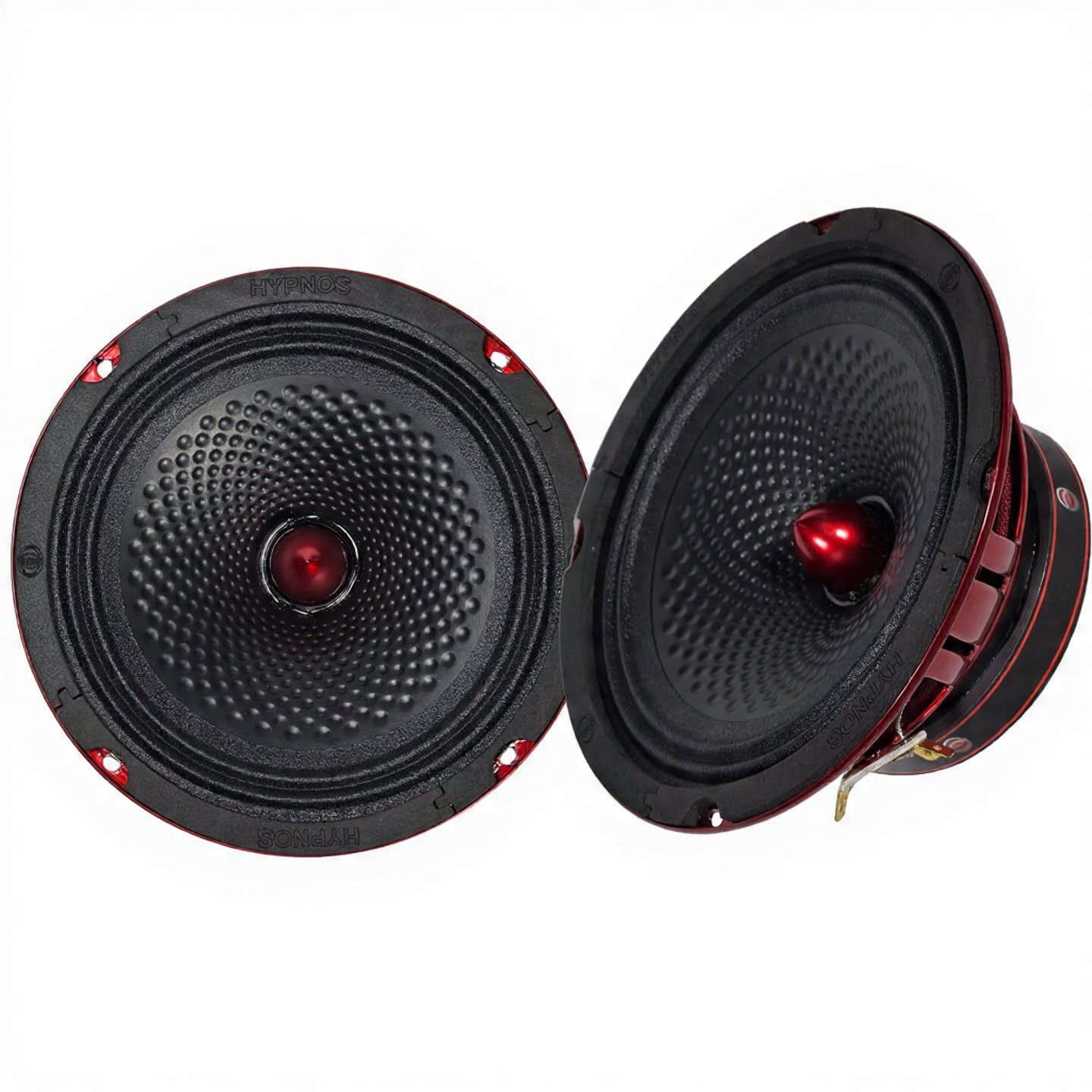

Upgrade your car audio system with the Reference Audio RA-PA6 Hypnos 6.5” midrange speaker featuring 100W RMS power, bullet cap design and powerful vocal clarity.
The Reference Audio PA6 Hypnos is a powerful 6.5-inch midrange speaker designed for loud and detailed car audio performance. It delivers strong vocal clarity, crisp midrange response and impressive sound projection for daily and high-output systems.
Additionally, the PA6 Hypnos features a durable steel basket, pressed paper cone and integrated bullet cap design. These components help deliver clean sound, improved durability and excellent efficiency.
100W RMS power handling
High-efficiency 90 dB sensitivity
Durable steel basket construction
Pressed paper cone for natural sound reproduction
Treated cloth surround for improved durability
Integrated bullet cap design
1″ KSV voice coil
18.2 oz ferrite magnet structure
4 Ohm nominal impedance
Frequency response from 140 Hz – 20 kHz
2-layer Kapton voice coil material
Designed for powerful vocal clarity and projection
Specifications

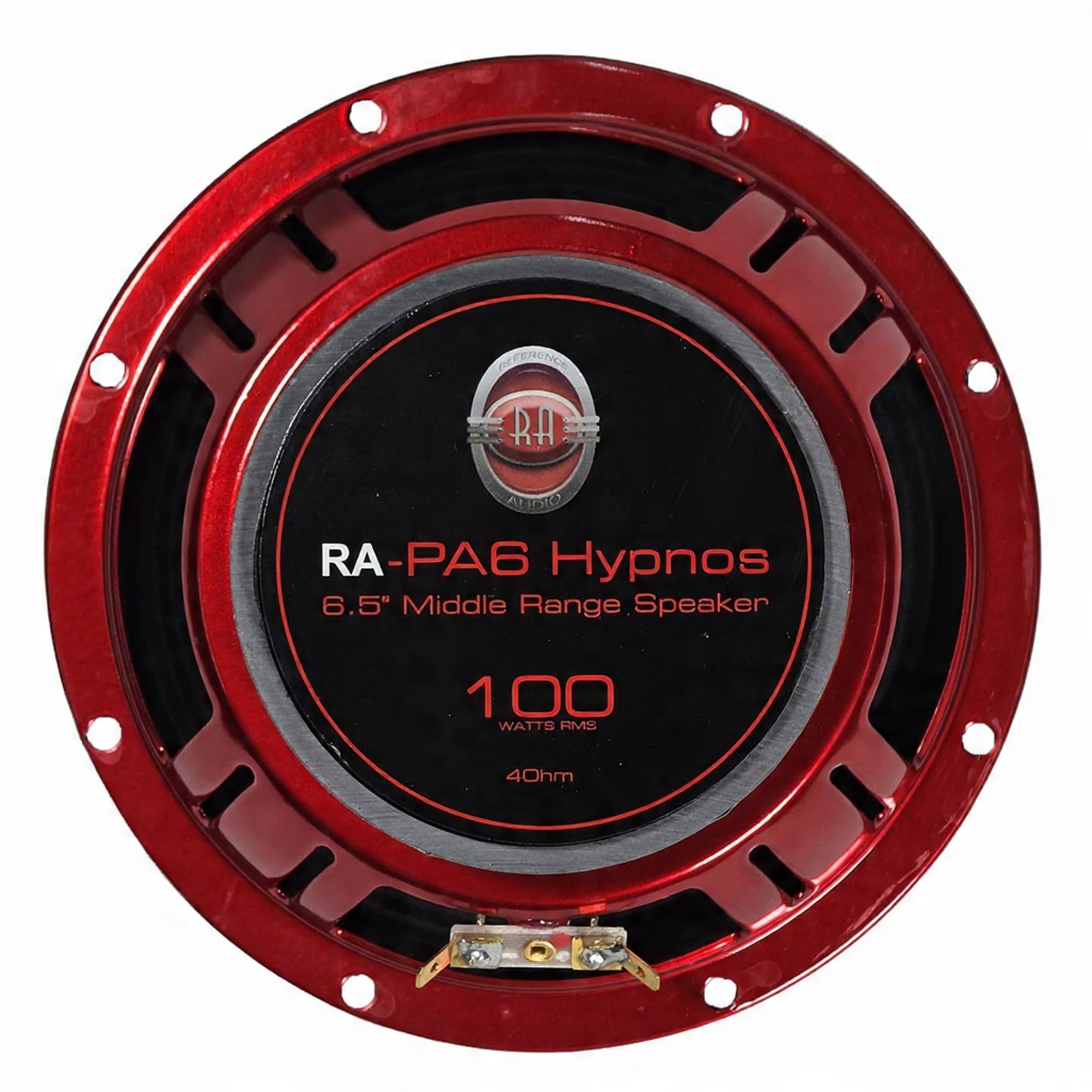

Product Name: Reference Audio RA-PA6 Hypnos
Speaker Size: 6.5″
Speaker Type: Midrange Speaker
Nominal Power Rating: 100W RMS
Sensitivity: 90 dB
Frequency Response: 140 Hz – 20 kHz
Nominal Impedance: 4 Ohm
DC Resistance: 3.2 Ohm
Cone Material: Pressed Paper
Basket Material: Steel
Surround Material: Treated Cloth
Voice Coil Diameter: 25.5 mm
Voice Coil Height: 5 mm
Voice Coil Material: 2-layer Kapton
Magnetic Cap Height: 6.5 mm
Magnet Structure: 18.2 oz Ferrite
Dimensions: 170 x 74 mm
Maximum Mounting Depth: 68 mm
