Description

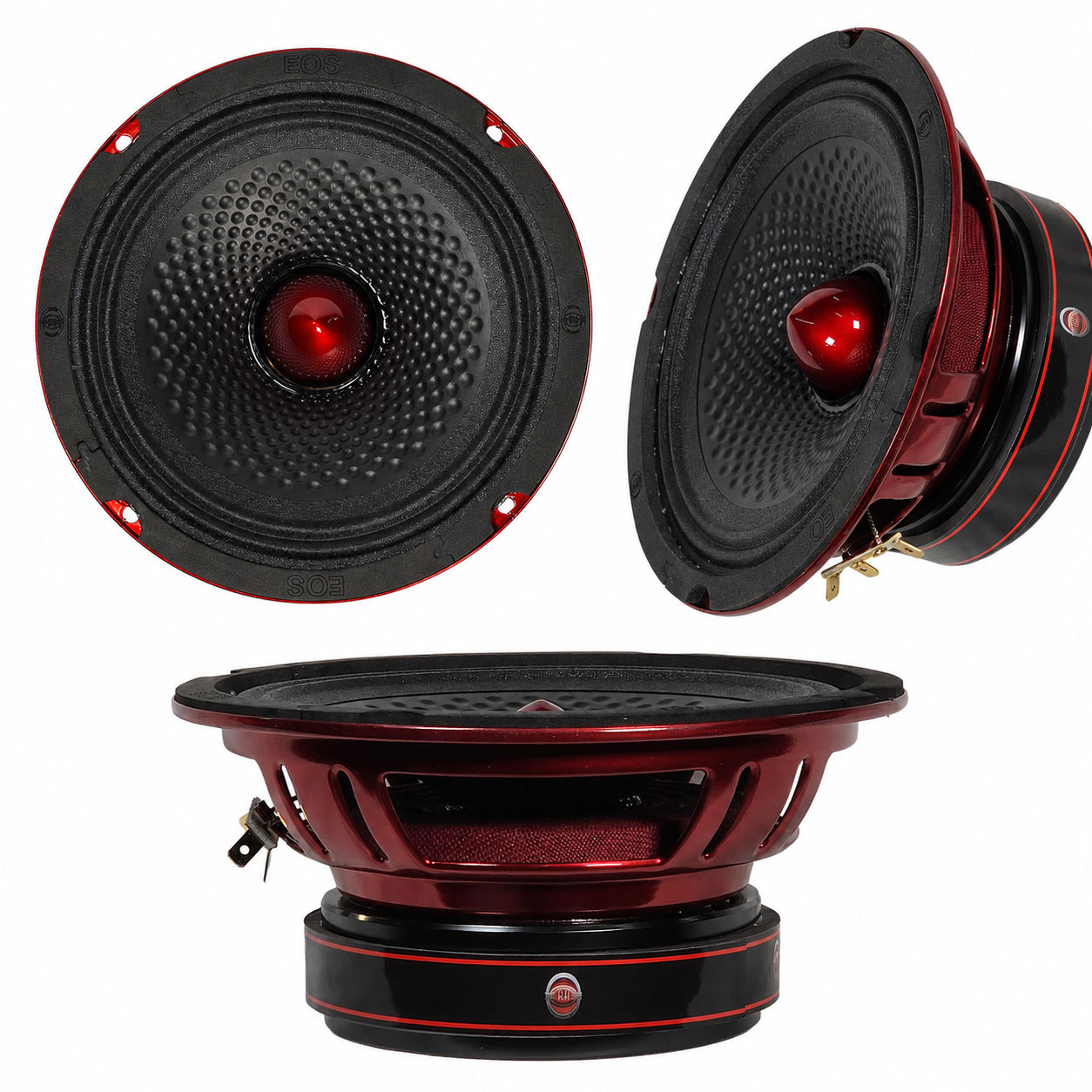

The Reference Audio PA6 Eos is a high-efficiency 6.5-inch midrange speaker built to deliver exceptional vocal clarity, aggressive projection and powerful output for performance-focused car audio systems. Featuring a durable steel basket, pressed paper cone and integrated bullet cap design, the PA6 Eos is engineered for loud, detailed and dynamic sound reproduction.
With a strong 150W RMS power rating and impressive 94 dB sensitivity, this midrange speaker offers the efficiency and output needed for SQL and SPL applications while maintaining clean and responsive audio performance.
Specifications

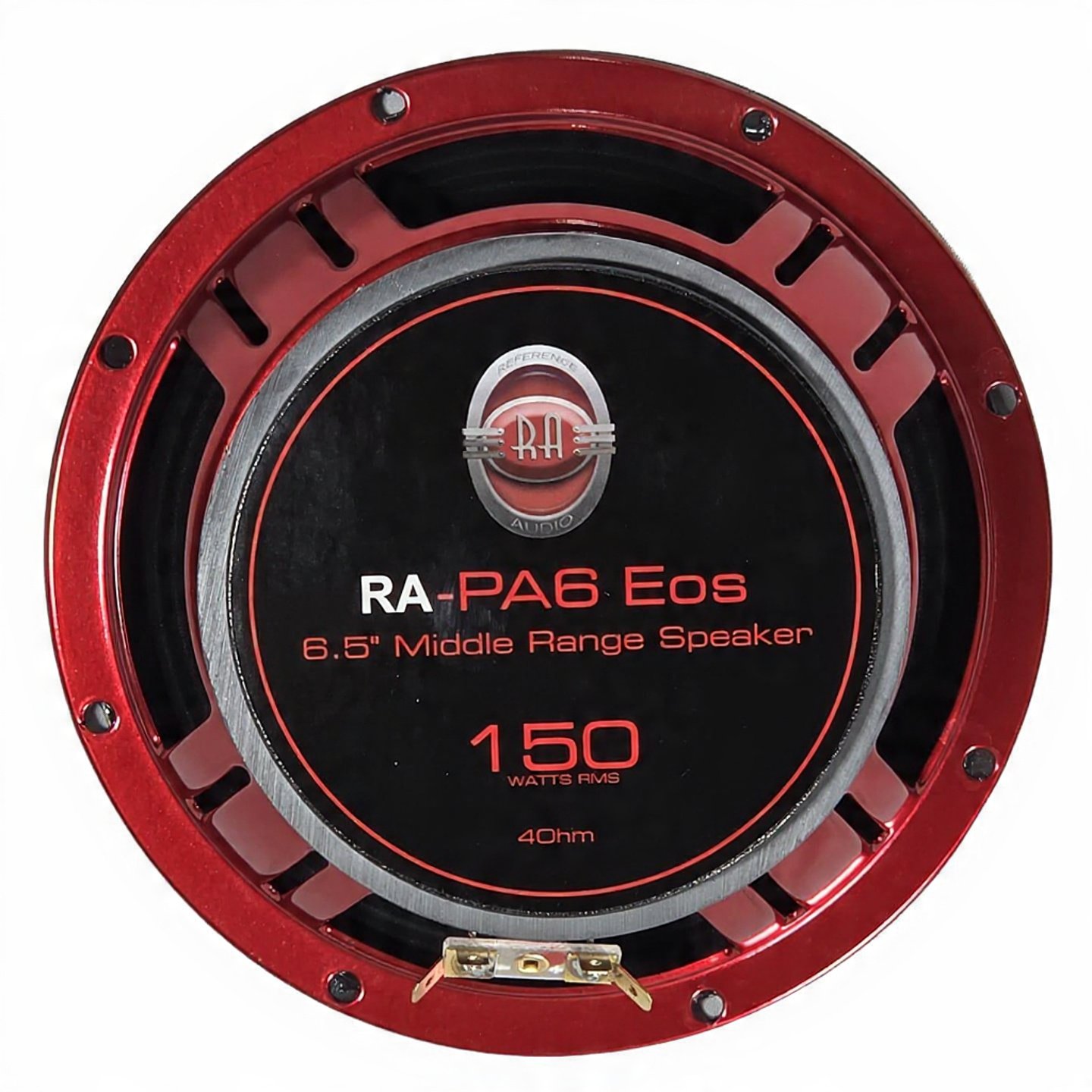

Product Name: Reference Audio RA-PA6 Eos
Speaker Size: 6.5″
Speaker Type: Midrange Speaker
Nominal Power Rating: 150W RMS
Sensitivity: 94 dB
Frequency Response: 100 Hz – 20 kHz
Nominal Impedance: 4 Ohm
DC Resistance: 3.2 Ohm
Cone Material: Pressed Paper
Basket Material: Steel
Surround Material: Treated Cloth
Voice Coil Diameter: 38.6 mm
Voice Coil Height: 6 mm
Voice Coil Material: 2-layer Kapton
Magnetic Gap Height: 8 mm
Magnet Structure: 24 oz Ferrite
Dimensions: 170 x 79 mm
Maximum Mounting Depth: 73 mm
