Description

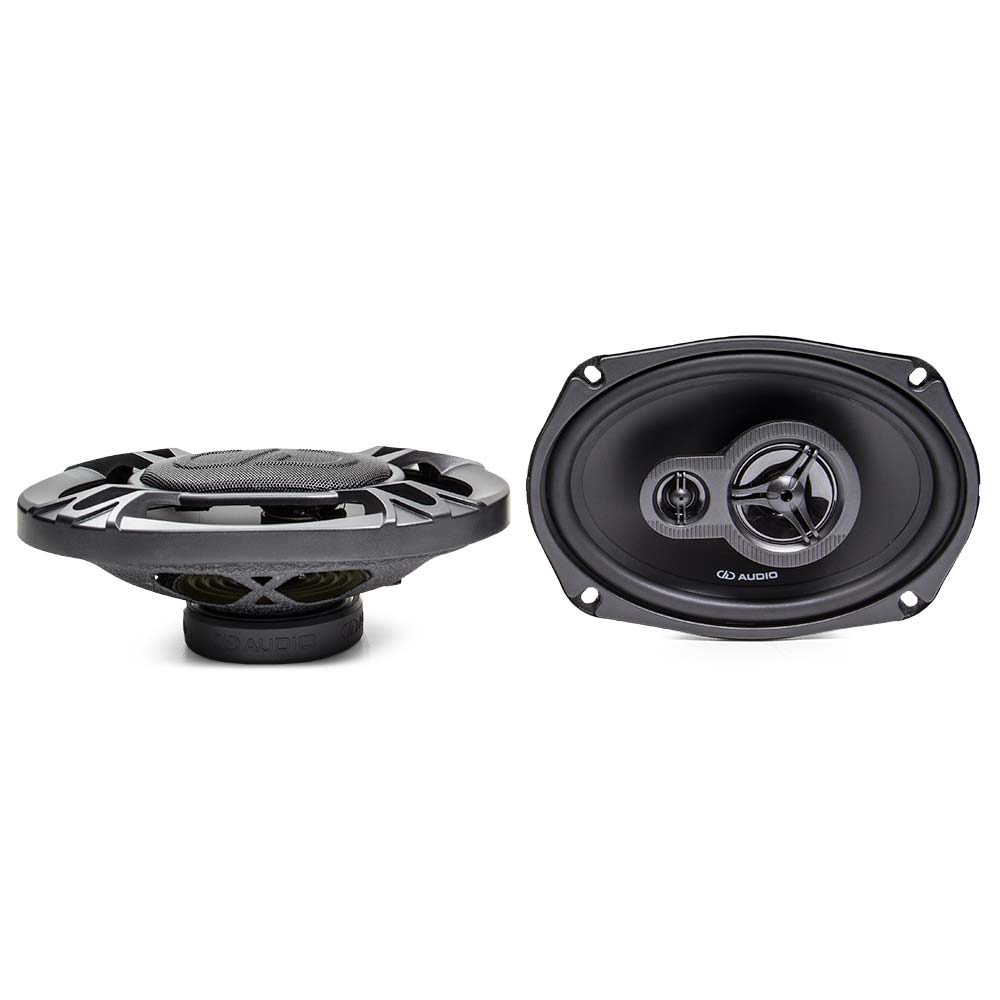

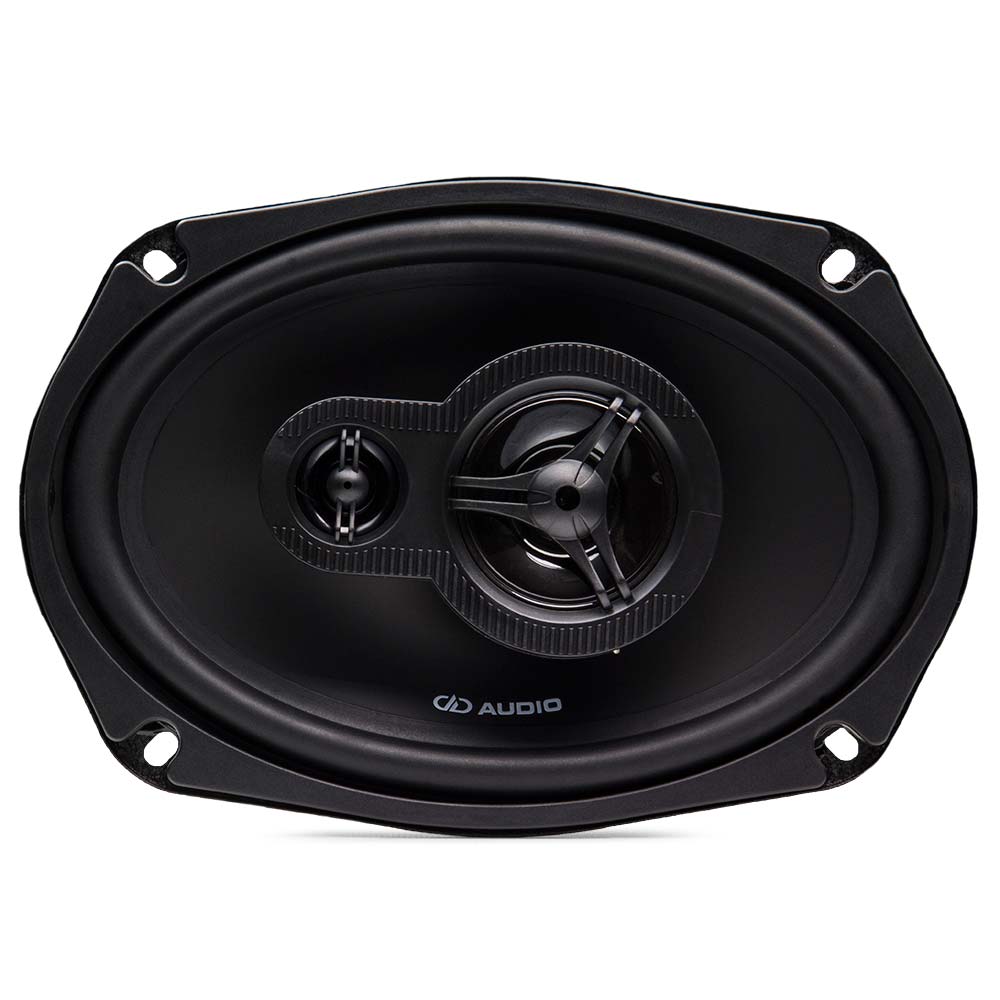

The E Series 6×9″ Coaxial Speaker is perfect for the listener who wants to instantly take their system from factory to fantabulous. This 3-way set is designed for efficiency with features that deliver outstanding sound and value.
Woofer:

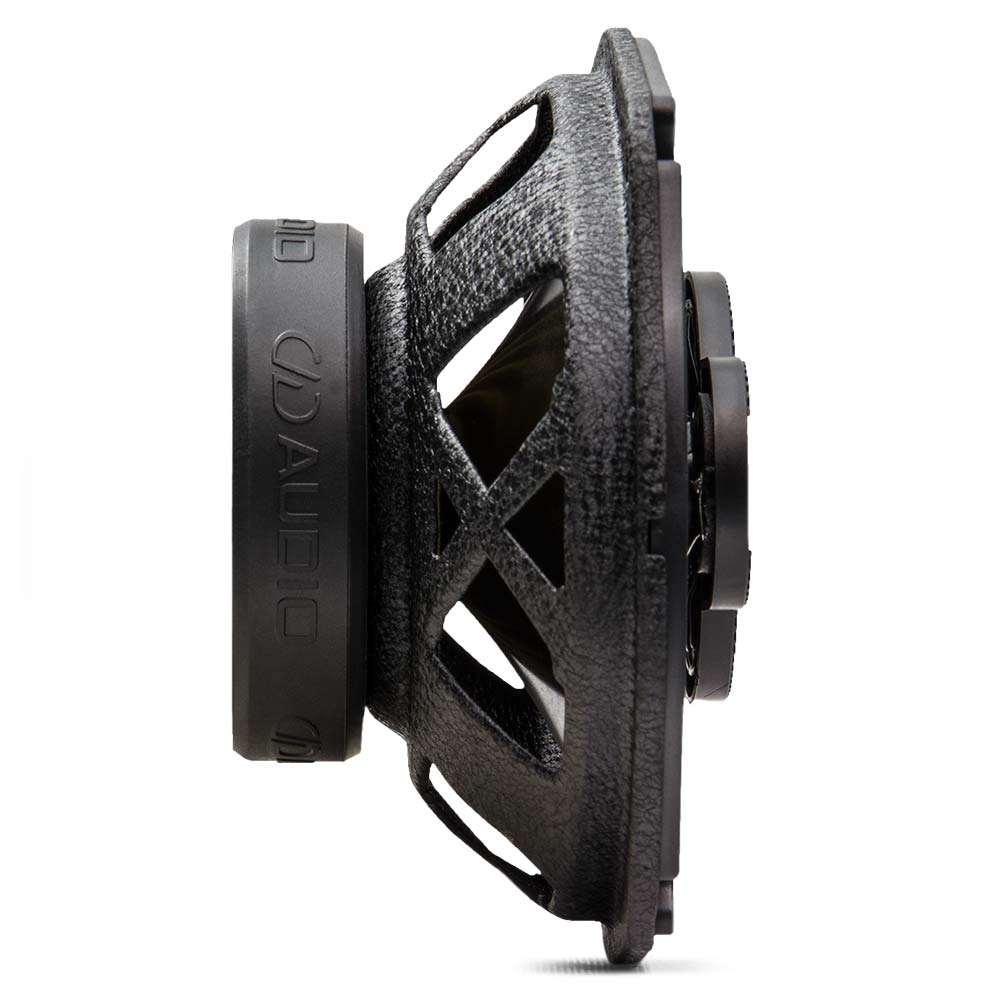

The EX6x9’s woofer features an injection molded poly cone, rubber surround, and rigid steel frame. For reduced inductance, extended high-frequency roll off, and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap. The soft parts are driven with a high flux 11 Oz ferrite magnet motor.
Midrange and Tweeter:
The 2″ mylar dome midrange and the 20 mm high-grade neodymium driven mylar dome tweeter are able to easily and cleanly reproduce the upper-frequency ranges needed to bring out the subtle details in your music.
Specs
| Driver Size: | 6x9 |
| Watts RMS: | 50 |
| Peak Power: | 300 |
| Impedance: | S4 |
| Frequency Response (Hz): | 50 - 20k |
| dBSPL: | 90 |
| Mounting Depth (In): | 2.56 |
The E Series Components are a go-to solution for everything from an instant OEM system upgrade to an all out custom audio system. This set offers high-end features and an outstanding sound that rivals much more expensive component sets.
