Description

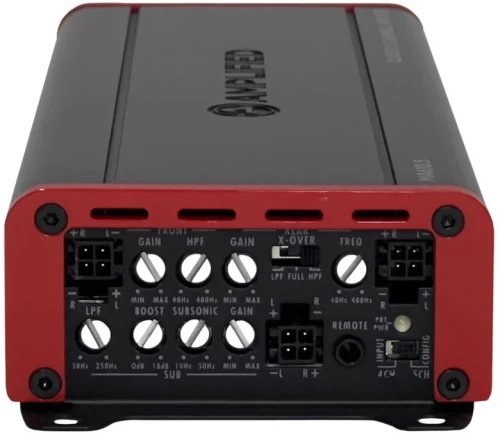

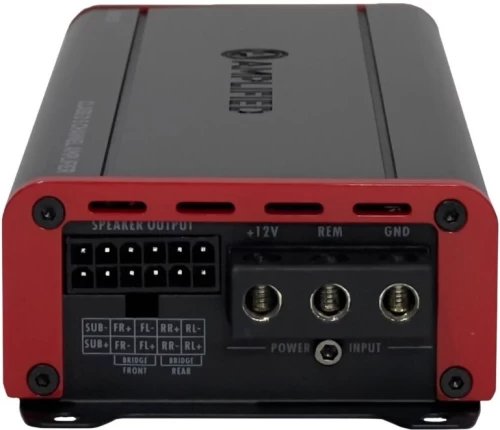

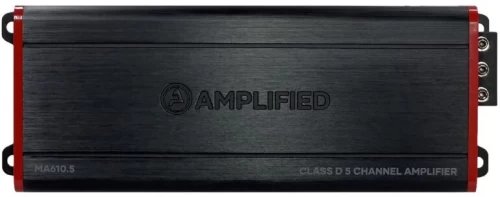

Amplified MA610.5 – 5-Channel High-Efficiency Digital Amplifier
The MA610.5 is a versatile 5-channel digital amplifier designed to power a complete vehicle sound system, combining strong full-range performance with dedicated subwoofer output in one compact unit.
High-efficiency 5-channel digital amplifier
Compact chassis with high power output
Low-level and high-level inputs with auto turn-on
Adjustable low-pass and high-pass filters
Subsonic filter and bass boost control
MOSFET power supply
Gain control for each channel section
Remote level control included
3-way protection circuitry (overload, short circuit, thermal)
LED power and protection indicator
Ideal for full-system upgrades, the MA610.5 delivers clean, balanced power to front and rear speakers while providing a dedicated high-power channel for a subwoofer. Its compact digital design ensures efficient operation with minimal heat generation, while adjustable crossover controls allow precise system tuning. With flexible input options and comprehensive protection circuitry, the MA610.5 offers a streamlined, space-saving solution for high-performance car audio systems.
Specifications
RMS Power (4-Ohm) 65 x 4 + 220 x 1
RMS Power (2-Ohm) 100 x 4 + 350 x 1
RMS Power Bridged (4-Ohm) 200 x 2
RMS Power (1-Ohm) N/A
THD <0.6%
Frequency Response(-3.0dB) 10Hz-30KHz
Frequency LPF(-3.0dB) 40Hz-4KHz
Frequency HPF(-3.0dB) 40Hz-4KHz
Signal To Noise Raio >92dB
Sensitivity 250mV-5.5V
Dimensions (mm) 205 x 85 x 40
