Description

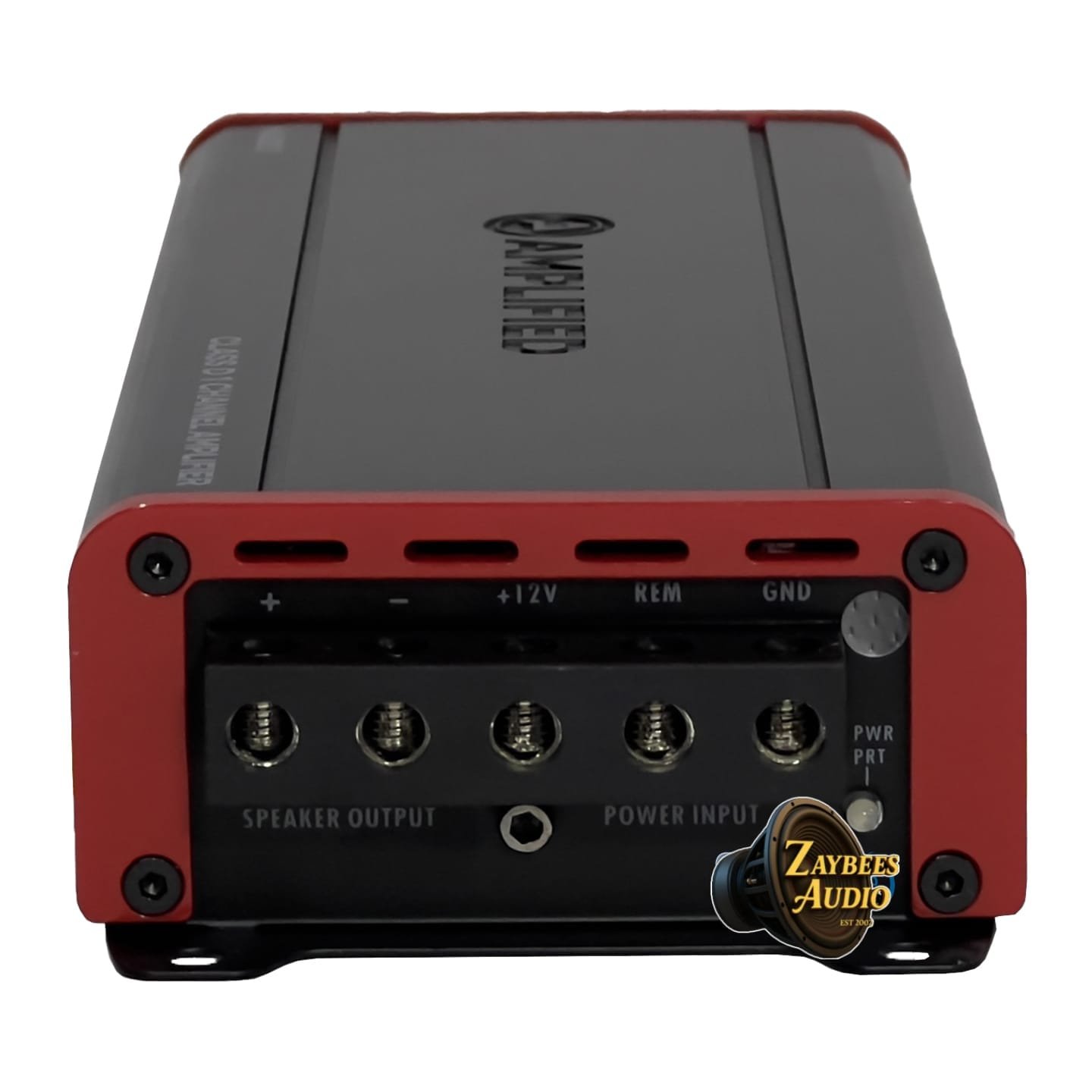

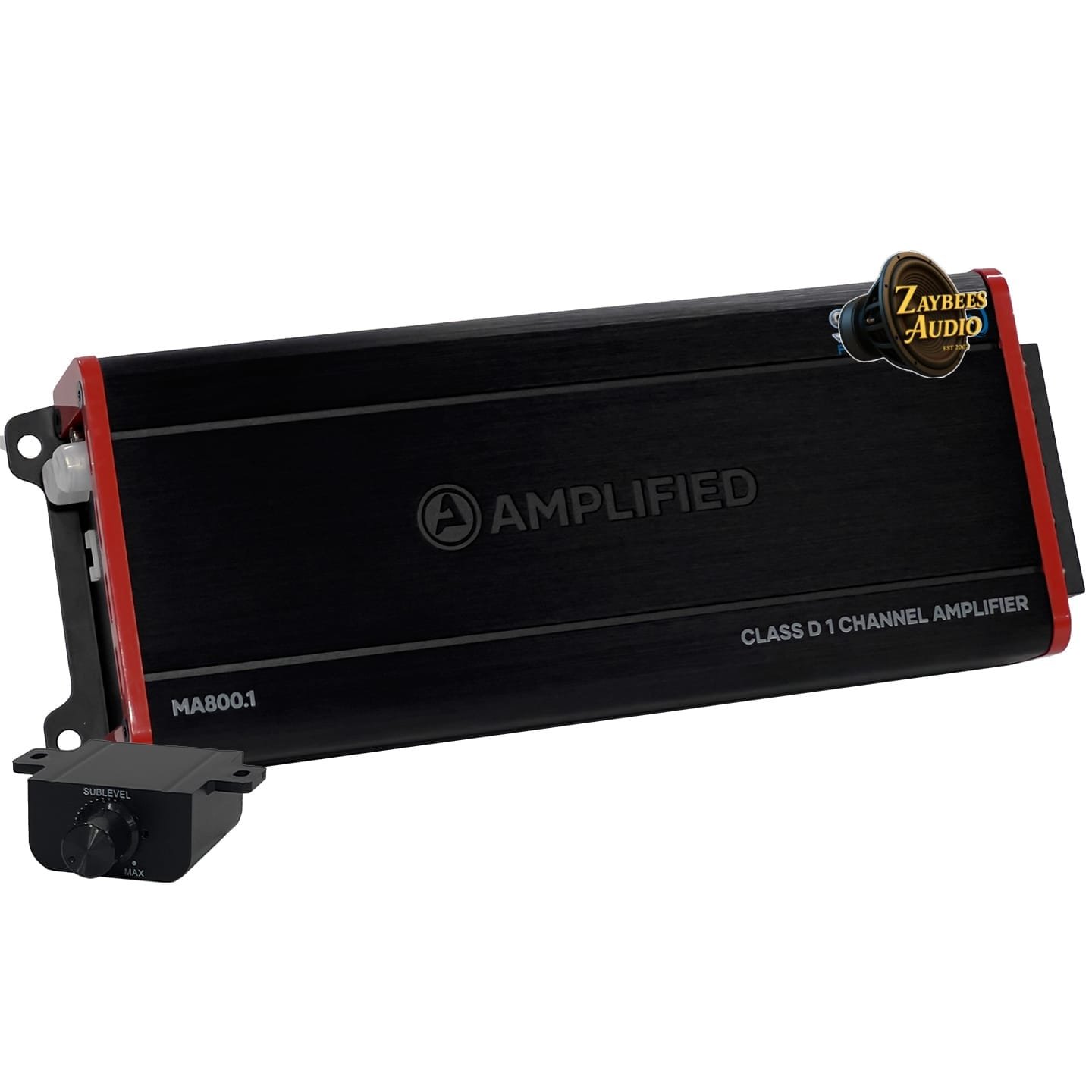

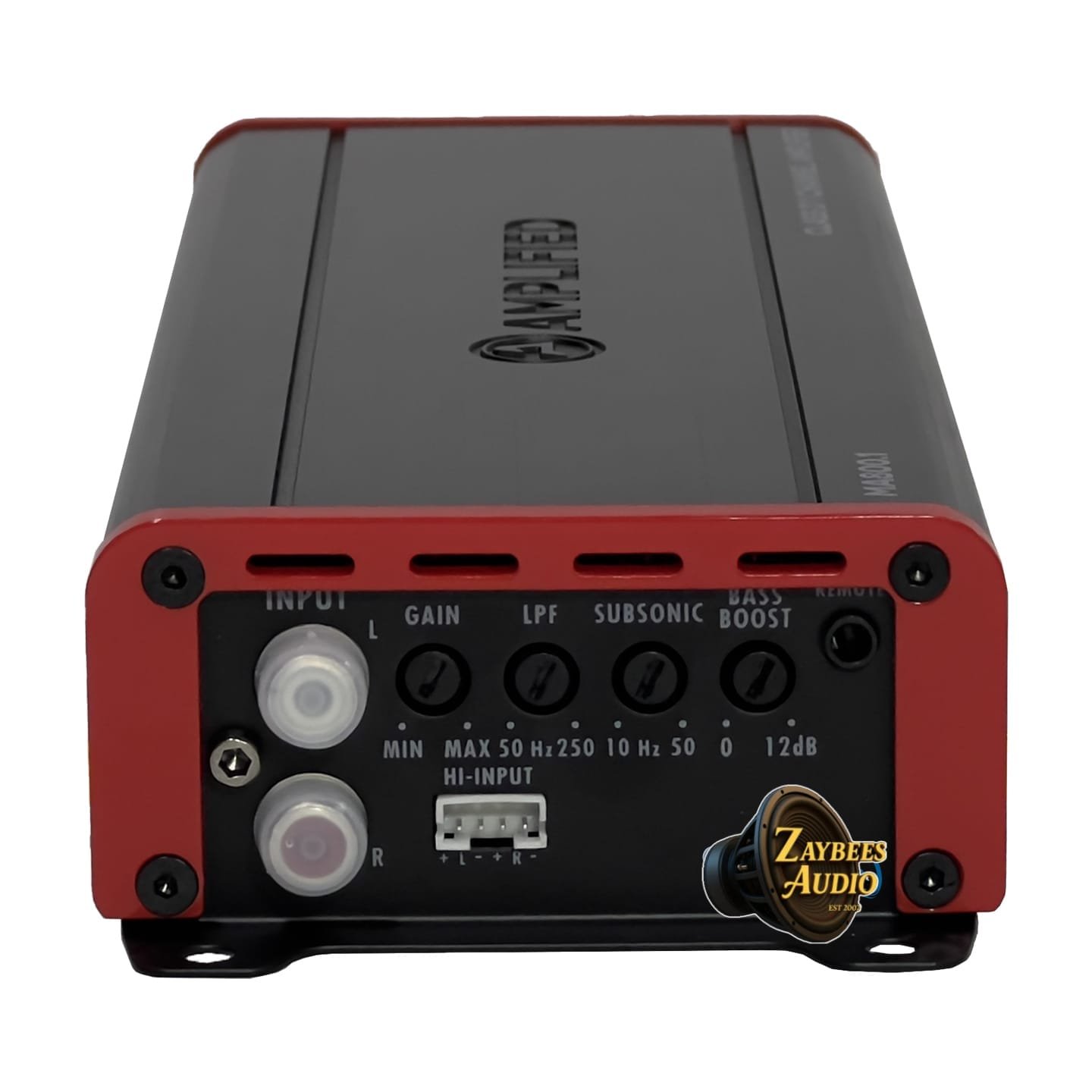

Amplified MA800.1 – Mono High-Power Digital Subwoofer Amplifier
The Amplified MA800.1 drives subwoofers with confidence and delivers strong, clean bass at all volume levels.
Because of its efficient digital design, it produces high output while reducing heat, which makes it ideal for demanding sound systems.
In addition, the advanced MOSFET power supply keeps the amplifier running smoothly under heavy loads.
The adjustable crossover and bass controls allow you to fine-tune the sound so it matches your subwoofer and enclosure perfectly.
Moreover, the MA800.1 supports stable 1-ohm operation and includes full protection features. As a result, it offers both high performance and reliable operation over time.
High-efficiency mono digital amplifier
Compact design with high power output
Low-level and high-level inputs with auto turn-on
Adjustable low-pass filter for subwoofer tuning
Subsonic filter and bass boost control
MOSFET power supply
Gain control for precise output adjustment
Remote level control included
3-way protection circuitry (overload, short circuit, thermal)
LED power and protection indicator
Specifications
RMS Power (4-Ohm) 300 x 1
RMS Power (2-Ohm) 570 x 1
RMS Power Bridged (4-Ohm) N/A
RMS Power (1-Ohm) 800
THD <0.12%
Frequency Response(-3.0dB) 10Hz-250Hz
Frequency LPF(-3.0dB) 50Hz-250Hz
Frequency HPF(-3.0dB) N/A
Signal To Noise Raio >92dB
Sensitivity 250mV-5.5V
Dimensions 205 x 85 x 40
