Description

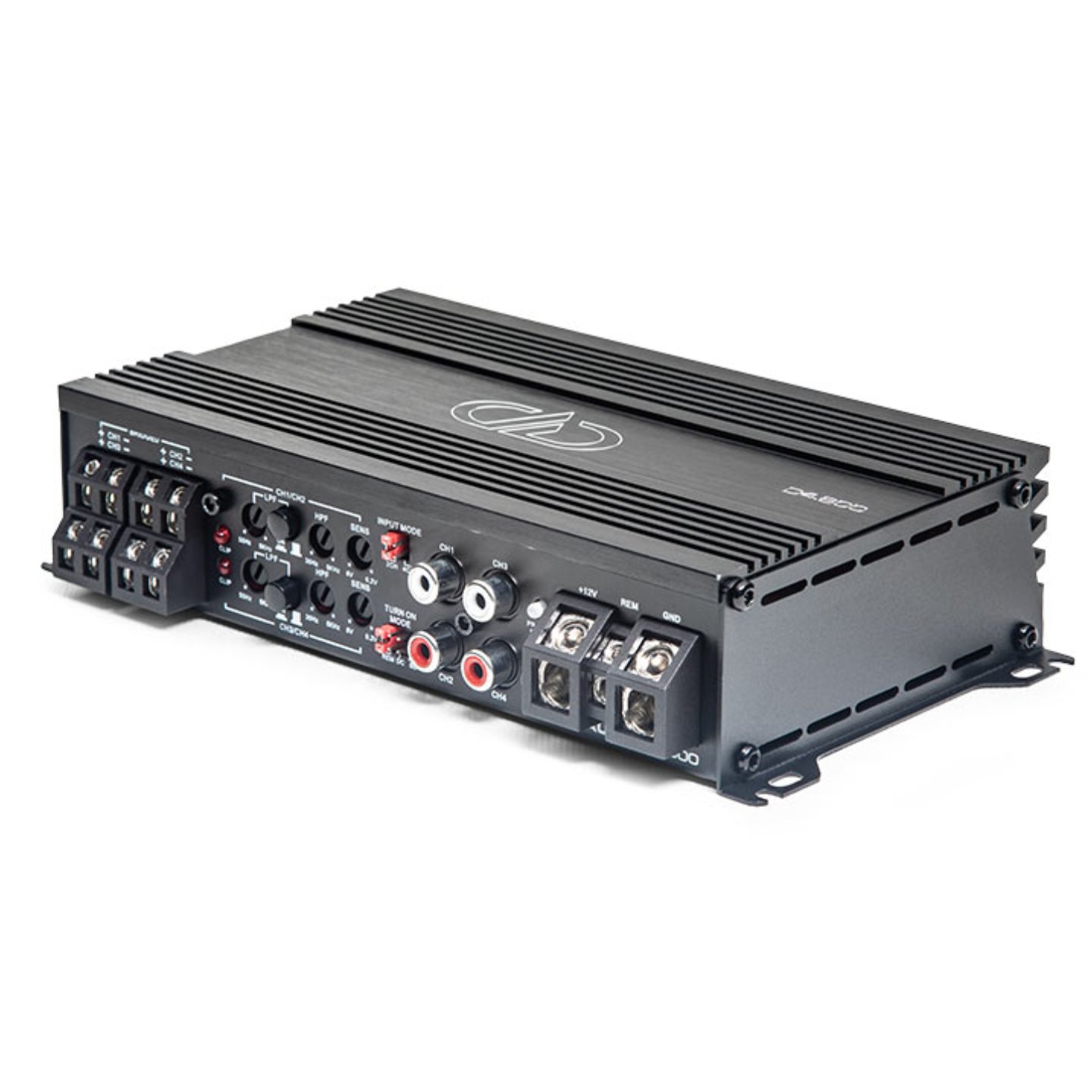

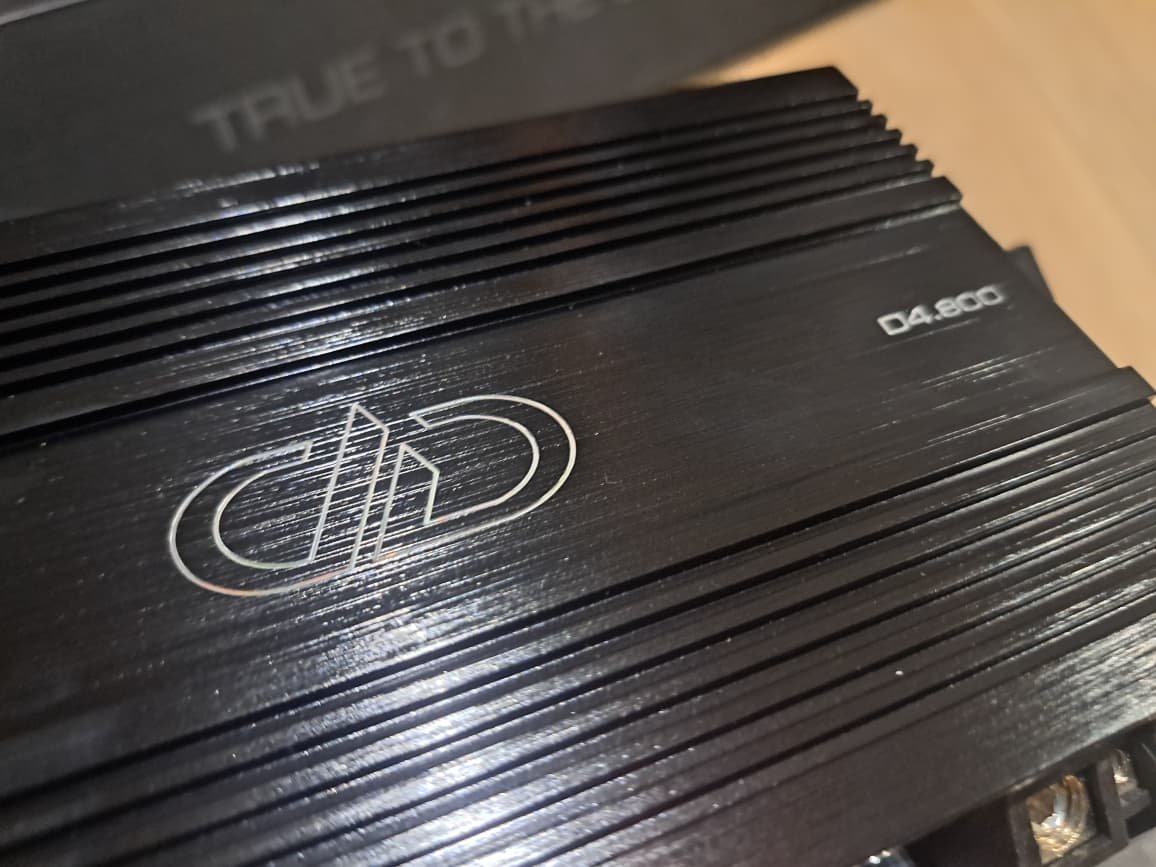

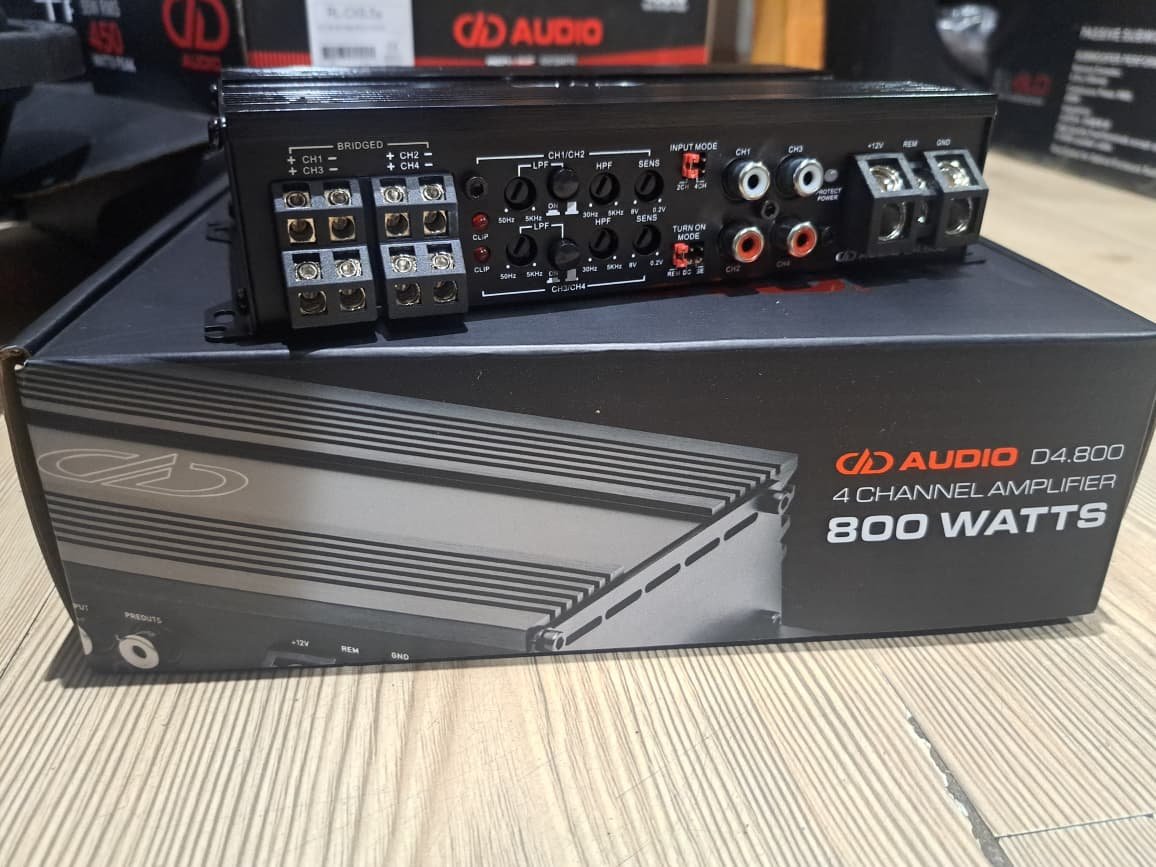

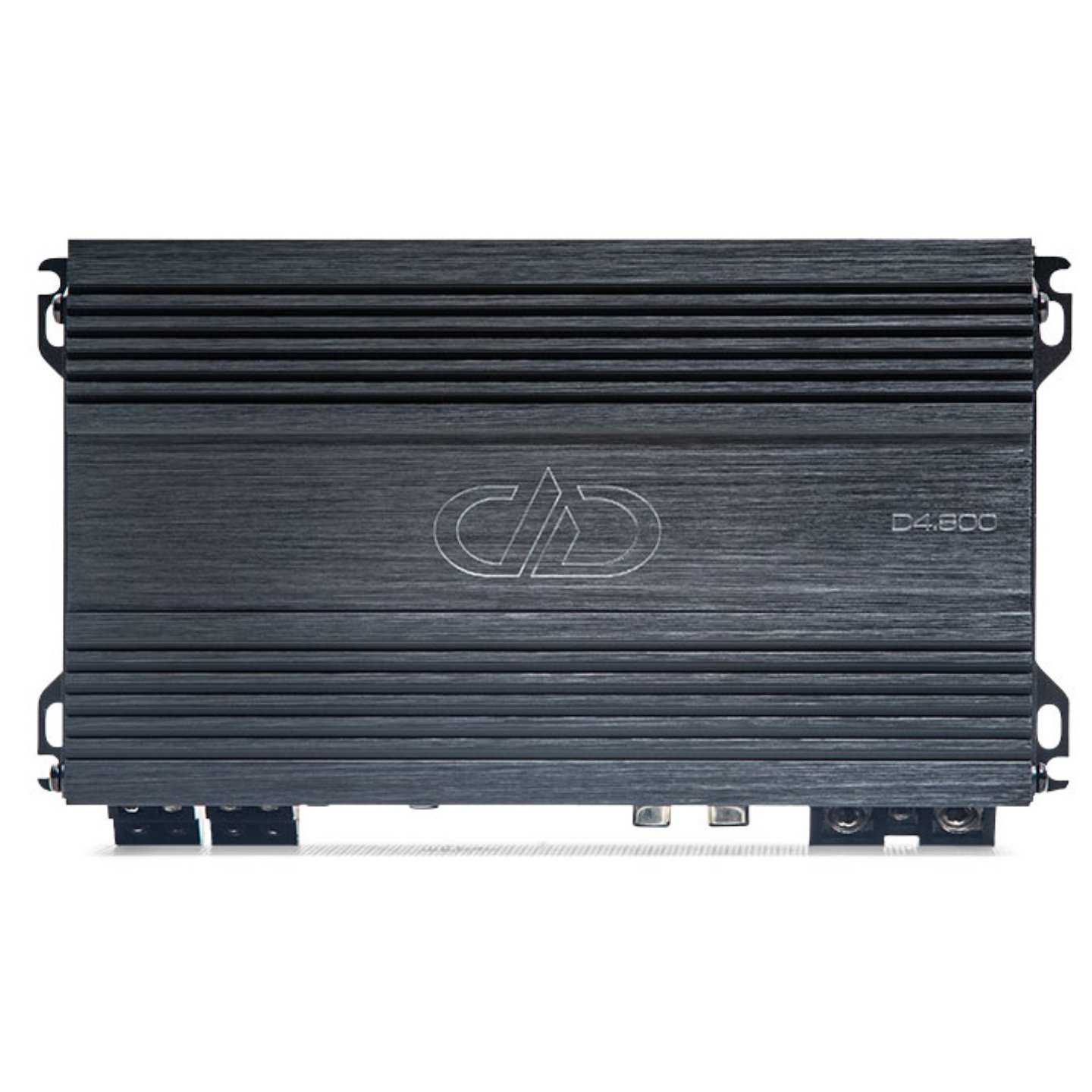

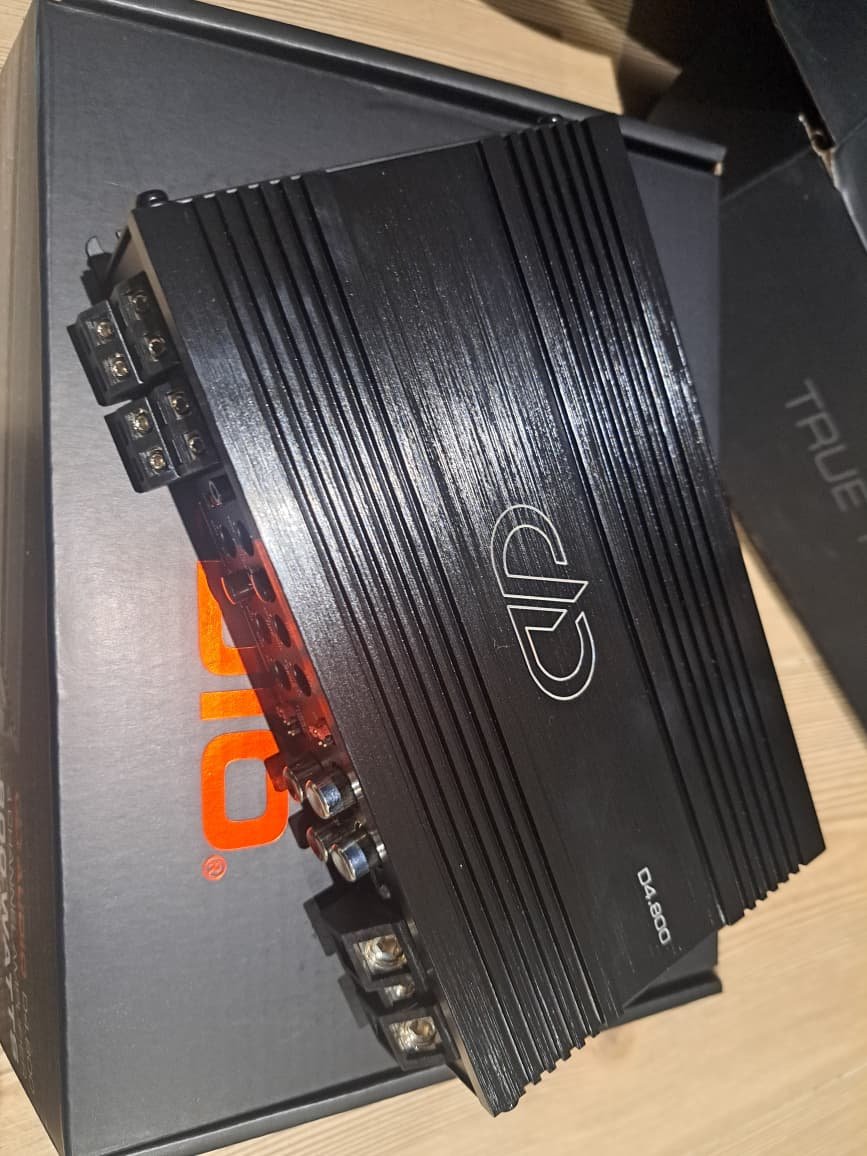

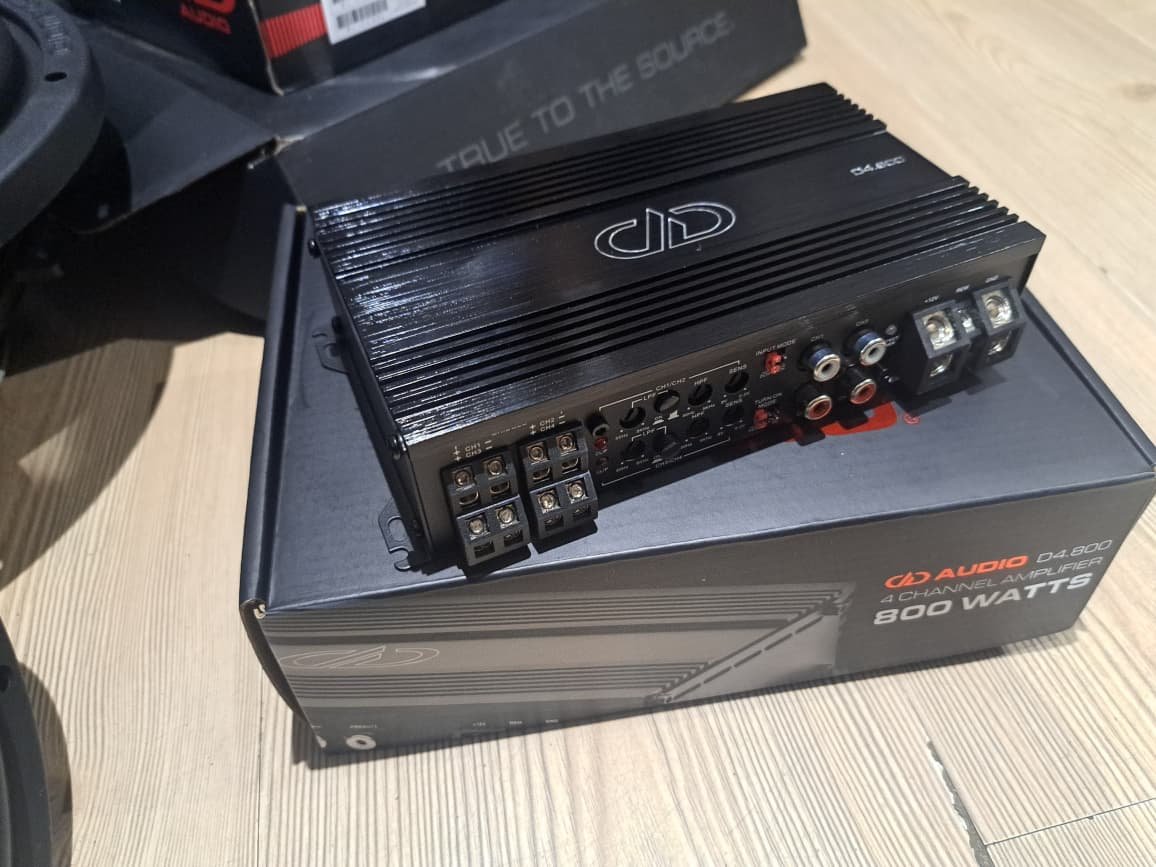

The DD Audio D4.800 Compact 4-Channel Amplifier delivers an impressive 800 watts of total power from an ultra-compact chassis measuring just 7″ x 4″ x 1.7″. Despite its small footprint, this amplifier provides exceptional output for car audio, motorcycle audio, marine audio, and powersports applications.
Furthermore, DD Audio engineers increased the amplifier’s output by 20% while maintaining the same compact size. As a result, the D4.800 can deliver up to 200 watts per channel at 2 Ohms for powerful and reliable performance.
Additionally, the amplifier includes advanced features such as bandpass crossovers, clipping indicators, differential RCA inputs, and auto turn-on functionality. Moreover, conformal-coated circuitry and sealed switches provide added protection in demanding environments. Therefore, the D4.800 is an excellent choice when maximum performance and installation flexibility are equally important.
Massive Power in a Compact Package
The DD Audio D4.800 Compact 4-Channel Amplifier is engineered for enthusiasts who demand maximum performance from minimal space. Despite its remarkably compact footprint, this amplifier delivers an impressive 800 watts of total power. As a result, it is perfect for modern installations where every inch matters.
Designed for High-Power Applications
DD Audio engineers have increased the output of the D4.800 by 20% while maintaining the same compact chassis size. Consequently, the amplifier can produce up to 200 watts per channel at 2 Ohms, providing exceptional power for speakers and audio systems that demand clean, dynamic performance.
Advanced Audio Control Features
The D4.800 includes a range of advanced features typically found on larger and more expensive amplifiers. Furthermore, built-in bandpass crossovers allow for precise tuning of your audio system. Additionally, clipping indicators help optimize amplifier settings while protecting speakers from distortion and damage.
Built for Harsh Environments
Unlike many compact amplifiers, the D4.800 is specifically designed to withstand demanding environments. The conformal-coated internal circuitry provides added protection against moisture and contaminants. Moreover, sealed rear-mounted switches help ensure reliable operation in motorcycles, boats, and powersports vehicles.
Flexible Installation Options
Thanks to its compact dimensions, the D4.800 can be installed in locations where traditional amplifiers simply won’t fit. Furthermore, DD Audio offers dedicated mounting brackets for select Harley-Davidson Road Glide and Street Glide motorcycles. Therefore, installers can achieve a clean and secure factory-style installation.
Reliable Performance and Sound Quality
The amplifier features differential RCA inputs, discrete outputs, and high-quality internal components for outstanding audio performance. As a result, users benefit from improved signal integrity, reduced noise, and exceptional clarity across the entire frequency range.
Perfect for Modern Audio Systems
Whether you’re upgrading a motorcycle audio system, building a marine audio setup, or enhancing your vehicle’s sound system, the DD Audio D4.800 offers an outstanding combination of power, efficiency, durability, and installation flexibility.

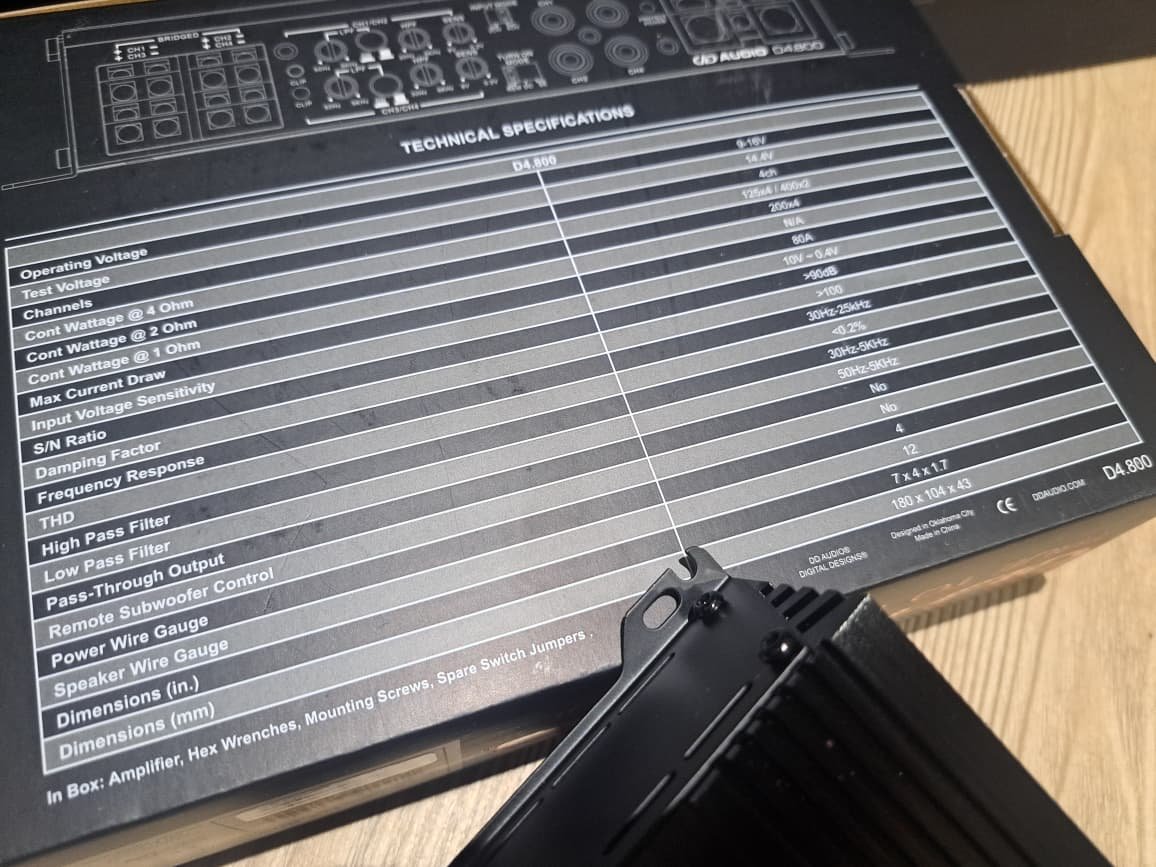

Specifications
Model: D4.800
Amplifier Type: 4-Channel Compact Amplifier
Frequency Response: 30Hz – 30kHz
Operating Voltage: 9V – 16V
Test Voltage: 14.4V
Output Channels: 4
Total Power Output: 800 Watts
Continuous Power @ 4 Ohms: 125W x 4 / 400W x 2
Continuous Power @ 2 Ohms: 200W x 4
Maximum Current Draw: 80A
RCA Input Voltage Sensitivity: 8V – 0.2V
Signal-to-Noise Ratio: >90dB
Damping Factor: >100
Total Harmonic Distortion (THD): <0.2%
Sub-Sonic Filter: 30Hz – 5kHz
Low-Pass Filter: 50Hz – 5kHz
Power Wire Gauge Input: 4 AWG
Speaker Wire Gauge Output: 16 AWG
Dimensions (Inches): 7 x 4 x 1.7
Dimensions (Millimeters): 180 x 104 x 43
Construction: Conformal Coated Internal Components
Switch Protection: Sealed Rear-Mounted Switches
Applications: Car Audio, Motorcycle Audio, Marine Audio, Powersports Audio
