Description

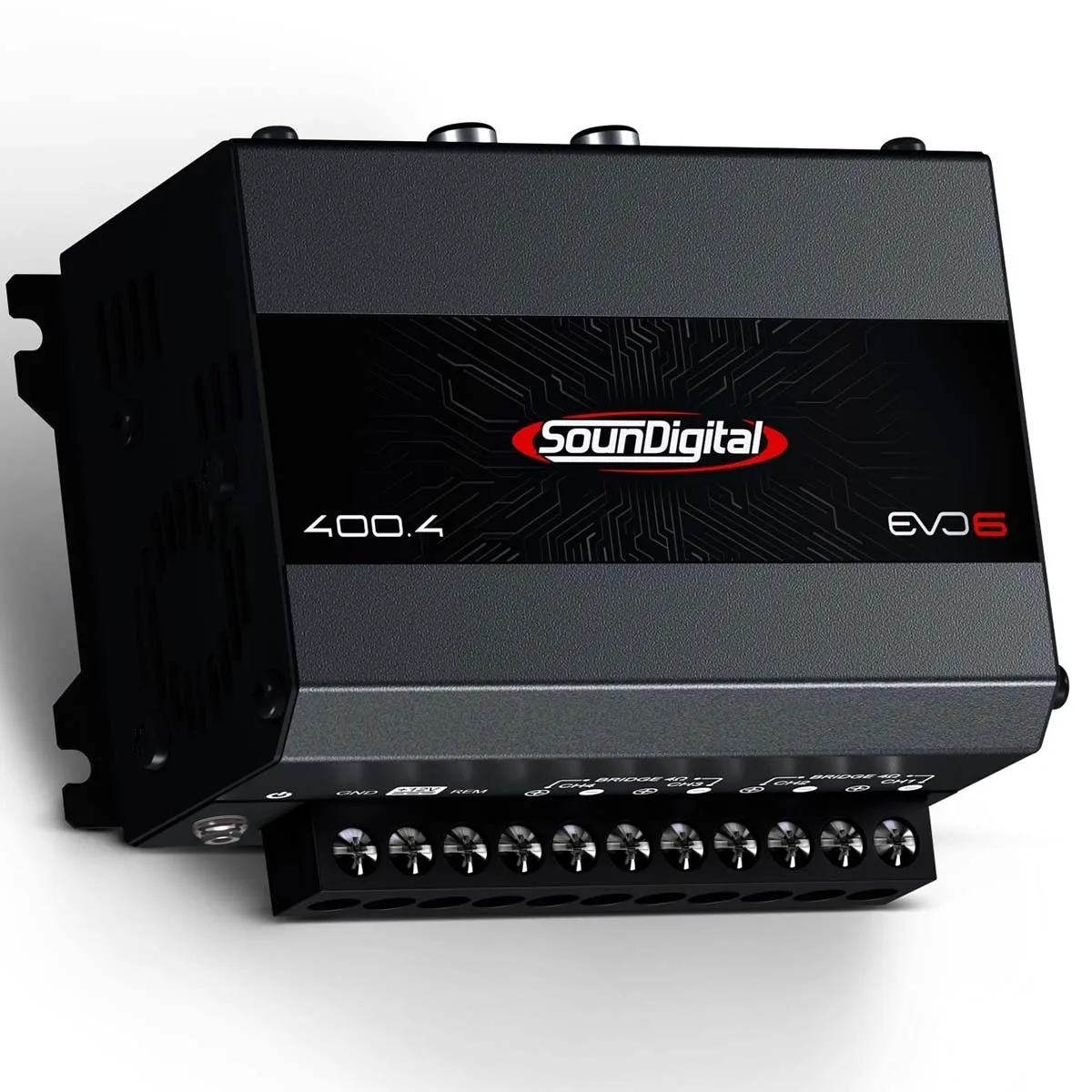

The 400.4 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.Technical Data
- Power at 4 ohms: 4 X 66 WRMS
- Power in 2 ohms: 4 X 100 WRMS
- Bridge power at 4 ohms: 2 X 200 WRMS
- Bridge power at 2 ohms: N/A
- High pass filter (HPF) 12db/octave: 80Hz
- Low pass filter (LPF) 12db/octave: 80Hz
- Frequency response (-3db): 8Hz - 20KHz
- Supply voltage: 9V - 16V
- Input sensitivity (RCA): 0.2V - 2V
- Music consumption: 20A
- Consumption with resistive load: 40.5A
- Total efficiency: 78%
- Recommended fuse (musical): 25A
- Damping factor: 200
- Power cable: 6mm² (9 AWG)
- Speaker cable: 2 x 1.5mm² (15 AWG)
- SNR: 93dB
- Recommended battery (minimum): 40Ah
- Width: 86.8 mm / 8.68 cm
- Length: 107.9 mm / 10.79 cm
- Height: 46.9 mm / 4.69 cm
- Weight: 0.389 kg
